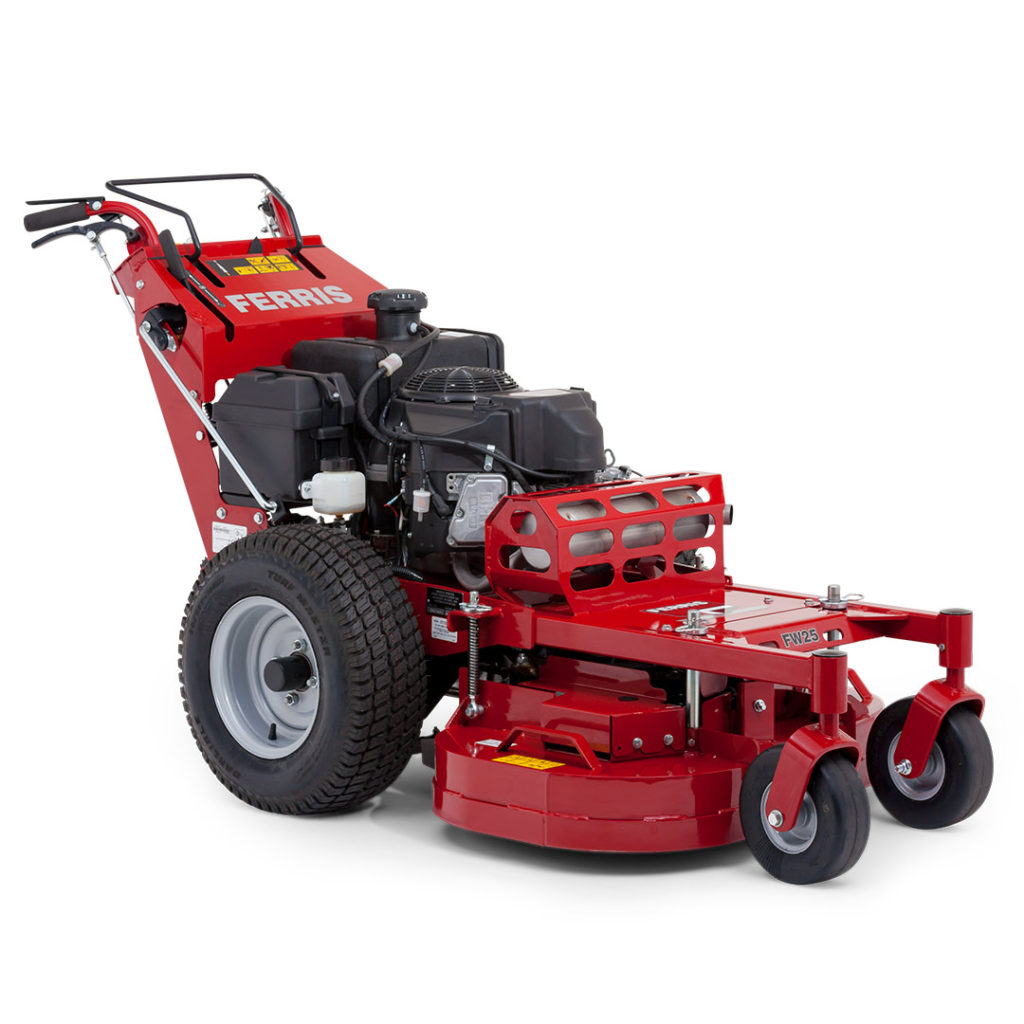

FW25: The compact and manoeuvrable walk-behind

The Ferris FW25 dual hydrostatic walk behind mower was built from the ground up offering high performance and strong build quality. It meets the demands of professional mowing crews by providing a smooth and user friendly operation. The FW25 also boasts an impressive 18.5 Kawasaki engine adding improved reliability and performance. The 36″ rear discharge deck is small enough to work nimbly in confined spaces and compact enough to transport easily.

This model is a revamp of the already popular FW35, featuring an upgraded cruise control and independent steering system. This walk-behind mower provides easier deck levelling to allow easy access to grease points and more durable water points for reduced maintenance.

Book A Demo

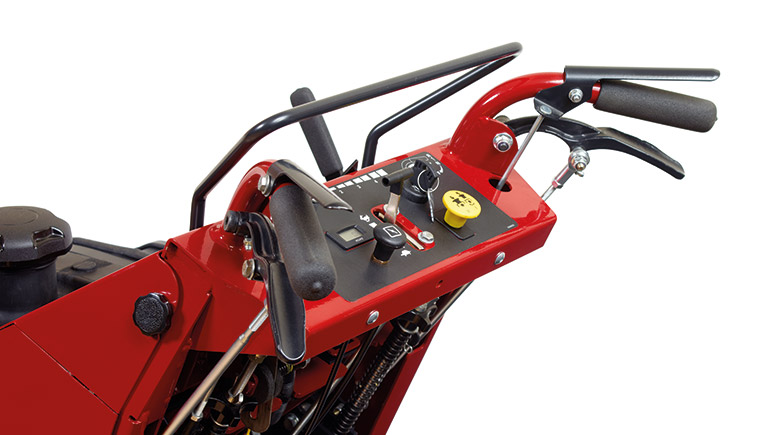

Cruise control bar

Reliably set your speed with the improved easy-to-reach cruise control bar featuring a convenient speed indicator.

Robust engine deck

Robust 1/4” steel engine deck construction is ruggedly built to withstand daily commercial duty operation.

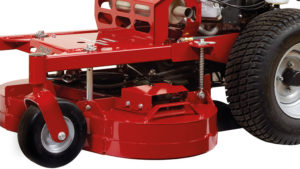

Deck mounting system

The simplified mower deck mounting system combines fewer parts and grease points for added durability and reduced maintenance.

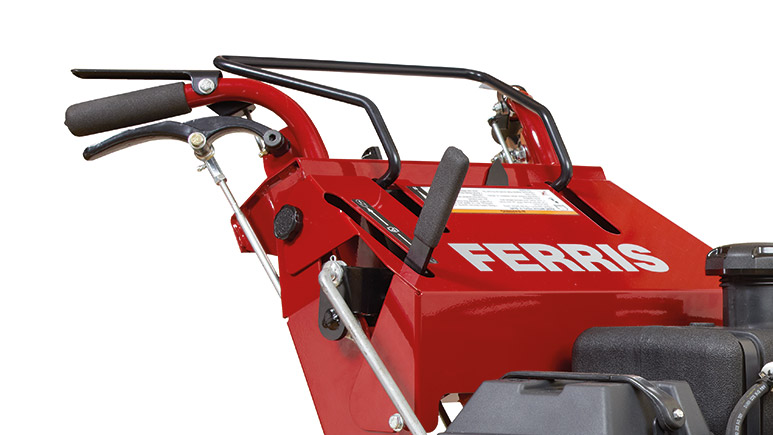

Park brake handle

Park brake handle is conveniently located beside the control panel, providing instant access with minimal operator effort to engage.

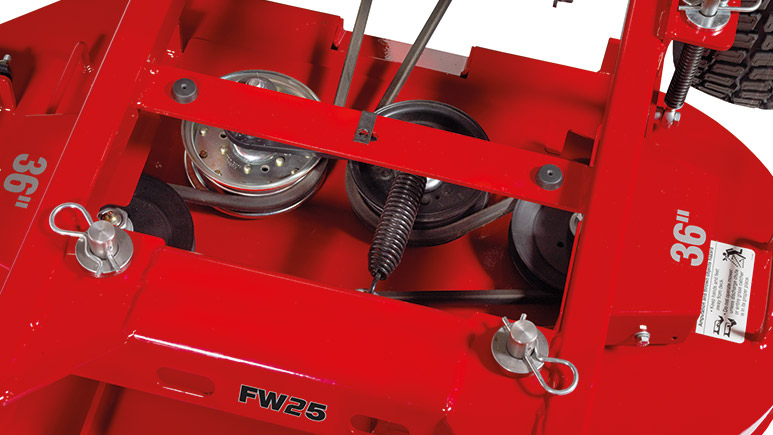

Deck drive belt system

Deck drive belt system and larger pulleys provide gentler belt tension, which – combined with our unique debris shield – extends belt life and reduces wear on bearings.

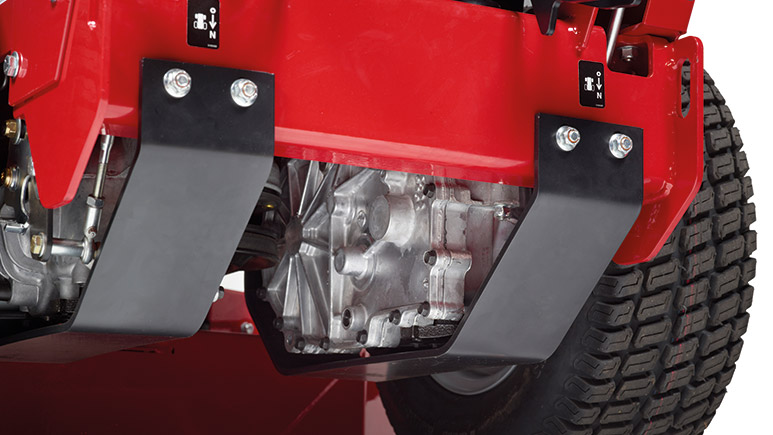

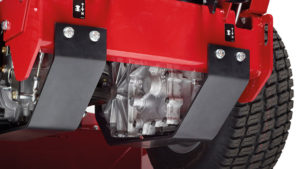

Heavy-duty transmission guards

Heavy-duty transmission guards reduce build up of debris to improve airflow and allow for access to the filter for maintenance.

FW 25 Specification

FW25KAV1936RDCE

 Engine
Make Kawasaki – Petrol
Model FS600V
Horsepower 18.5 HP
Cylinders / Displacement 2 Cylinders V-Twin / 603 cc
Cooling Air cooled
PTO Electric PTO clutch
Starting Electric
Fuel Capacity 19 Litres
Mower
Cutting width (cm/inch) 91 cm / 36” Rear Discharge
Deck Configuration Rear discharge/mulching insert and mulching blades
Cutting Height (cm) 3,8 – 11,4 cm
Deck Construction 3.4 mm fabricated construction, full width double top deck, 4,8 mm scuff guards, 9.5mm leading edge, overlap welded corners
Mower Spindles Cast aluminium 133 mm; 25,4 mm shaft
Deck lift system Central height adjustment with double hand wheels
Suspension & Drive Train
Suspension n.a.
Transmission Independent Hydro-Gear® ZT-3100™ transaxles
Drive Axles 25,4 mm Tapered with 4-bolt flange
Drive Tyres (inch) 20 x 7.00 – 10 (4 ply)
Caster Tyres (inch) 11 x 4.00 – 5 (4 ply)
Ground Speed
Speed-fwd. (km/h) 0 – 9,6 km/h
Speed-rev. (km/h) 0 – 4,5 km/h
Dimensions
Overall length (cm) 198
Overall width (cm) 94
Dry weight (Kgs) 286
Operator Control & Comfort Systems
Roll-Over Protection Structure n.a.
Instrumentation Speed indicator, hour meter
Controls Operator presence, cruise Control Bar, independent forward and reverse levers, Foot activated neutral
Parking Brake / Safety Circuit Integrated transaxle brake
Warranty
Engine 2-Year Manufacturer’s Limited Warranty
Transmission 2-Year Manufacturer’s Limited Warranty
Balance of machine 2-Year Limited Warranty commercial use. Unlimited hours, front to rear, parts and labour. Belts, Tires, Brake Pads, Battery, Blades: 90 days
