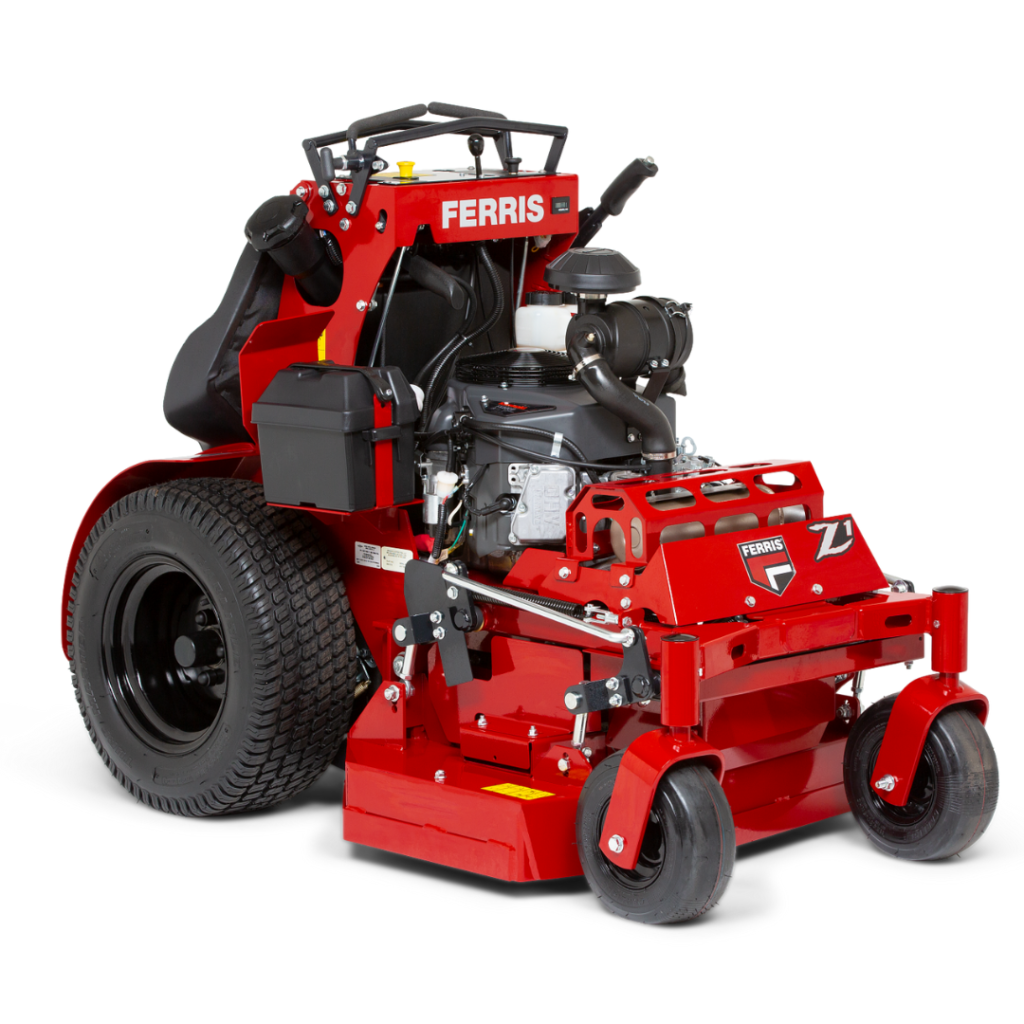

SRSTMZ1

The Soft Ride Stand-on SRS™ Z1 is raising the bar with our patent pending adjustable operator platform, featuring suspension technology, optimising operator comfort and increasing  productivity! The superior balance provides stability and manoeuverability that exceeds expectations for traction and handling.

The Soft Ride Stand-on SRS™ Z1 is designed to allow for quick operator exit and re-entry. Need to walk away from the mower to move an obstacle or debris? The PTO will automatically disengage when the operator leaves the platform. Restarting the blades is just as easy. When the operator steps back onto the platform and re engages the PTO switch they can continue mowing.

Book A Demo

SRSTMZ1 Features

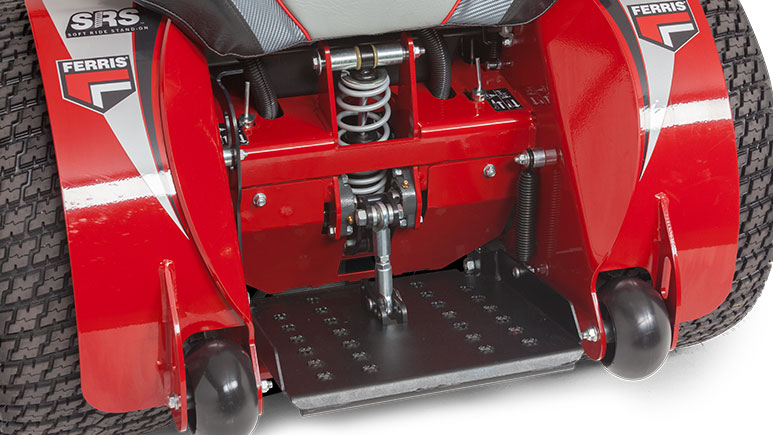

The patent pending suspension platform system is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.

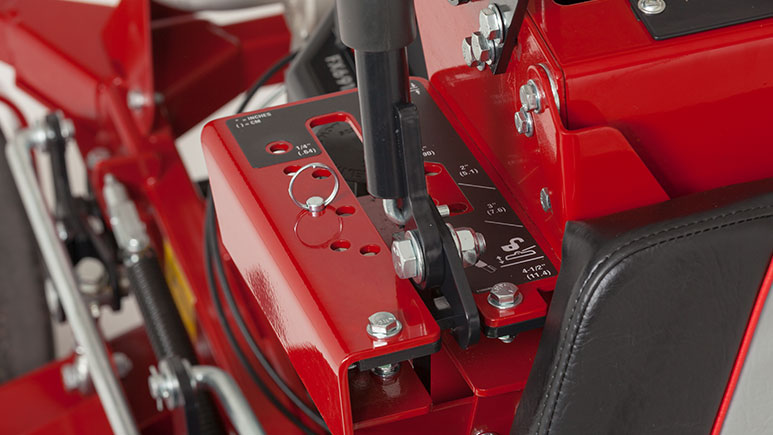

Height of cut is easily changed from the operator compartment for no hassle curb climbing and trailer loading.

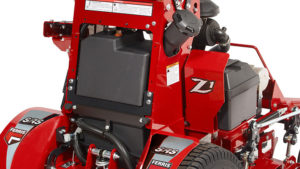

Generous 23 litres fuel tank is centrally located for consistent balance, and the fuel filler neck is conveniently located on the side for easy filling.

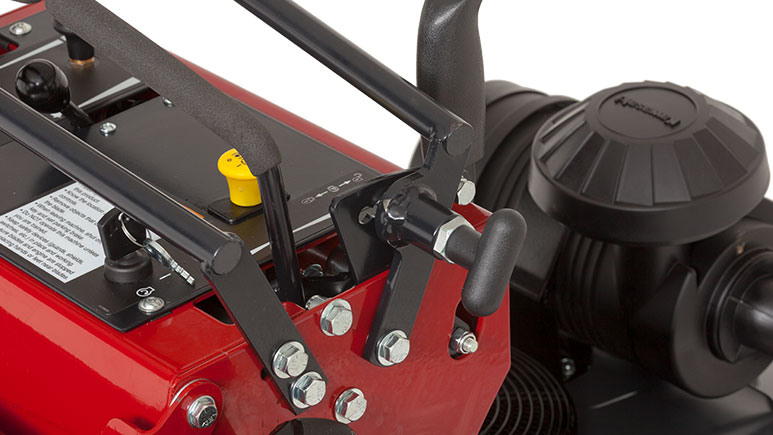

The easy locking 3-position speed control setting is conveniently located and requires no tools to facilitate smooth operation in a wide range of conditions.

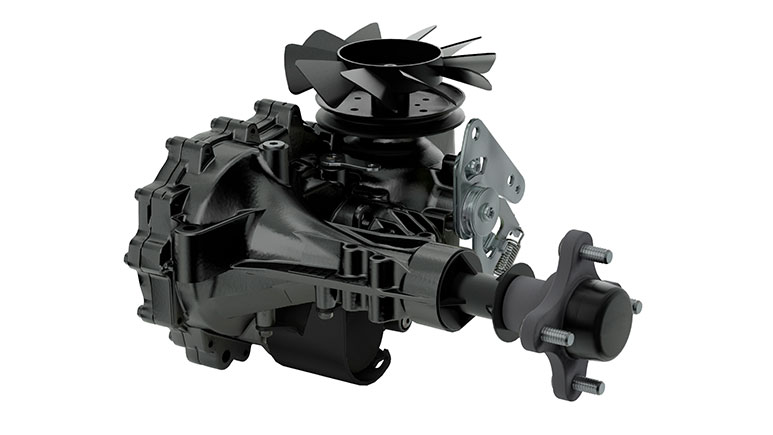

Commercial Hydro-Gear® ZT-3400® Transaxles are designed for high performance and are fully serviceable.

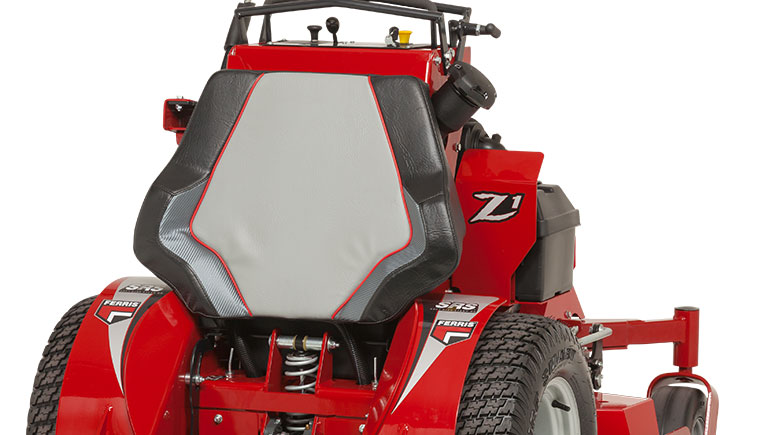

Ergonomically designed thigh pad provides superior operator comfort, especially on uneven terrain.

The iCD™ Cutting System allows better airflow, superior cut quality and complements the innovation of the Ferris line. (SRSZ1KAV2248RDCE)

Specification

SRSZ1KAV2248RDCE

 Engine
Make Kawasaki – Petrol
Model FX691V
Horsepower 22,0 HP
Cylinders / Displacement 2 Cylinders V-Twin / 726 cc
Cooling Air-cooled
PTO Electric PTO clutch
Starting Electric
Fuel Capacity 23 Litres
Mower
Cutting width (cm/inch) 122 cm / 48” Rear Discharge iCD™
Deck Configuration Rear discharge/mulching insert and mulching blades
Cutting Height (cm) 44 – 114 mm
Deck Construction 3,4 mm fabricated construction, double top deck, double reinforced side skirts, overlap welded corners, iCD technology
Mower Spindles Cast aluminium 133 mm; 25,4 mm shaft
Deck lift system Hand-operated, spring assisted
Suspension & Drive Train
Suspension Patent pending adjustable suspension platform
Transmission Independent Hydro-Gear® ZT-3400™ transaxles
Drive Axles 28,6 mm Tapered with 4-bolt flange
Drive Tyres (inch) 23 x 10.50 – 12 (4 ply)
Caster Tyres (inch) 11 x 4.00 – 5 (4 ply) Flat free
Ground Speed
Speed-fwd. (km/h) 0 – 12,8 km/h
Speed-rev. (km/h) 0 – 6,4 km/h
Dimensions
Overall length (cm) 166
Overall width (cm) 94
Dry weight (Kgs) 377
Operator Control & Comfort Systems
Roll-Over Protection Structure N.A.
Instrumentation Hour meter, fuel level gauge
Controls Integrated forward & reverse control levers with stability bar, Automatic PTO Restart
Parking Brake / Safety Circuit Internal transaxle brake / Operator presence in platform, Parking brake safety circuit for starting engine
Warranty
Engine 3-Year Manufacturer’s Limited Warranty
Transmission 2-Year Manufacturer’s Limited Warranty
Balance of machine 4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Belts, Tires, Brake Pads, Battery, Blades: 90 days

Specification

SRSZ1KAV1936RDCE

Engine
Make Kawasaki – Petrol
Model FX600V
Horsepower 19,0 HP
Cylinders / Displacement 2 Cylinders V-Twin / 603 cc
Cooling Air-cooled
PTO Electric PTO clutch
Starting Electric
Fuel Capacity 23 Litres
Mower
Cutting width (cm/inch) 91 cm / 36” Rear Discharge
Deck Configuration Rear discharge/mulching insert and mulching blades
Cutting Height (cm) 44 – 114 mm
Deck Construction 3,4 mm fabricated construction, double top deck, double reinforced side skirts, overlap welded corners, round trim edge
Mower Spindles Cast aluminium 133 mm; 25,4 mm shaft
Deck lift system Hand-operated, spring assisted
Suspension & Drive Train
Suspension Patent pending adjustable suspension platform
Transmission Independent Hydro-Gear® ZT-3400™ transaxles
Drive Axles 28,6 mm Tapered with 4-bolt flange
Drive Tyres (inch) 23 x 8.50 – 12 (4 ply)
Caster Tyres (inch) 11 x 4.00 – 5 (4 ply) Flat free
Ground Speed
Speed-fwd. (km/h) 0 – 12,8 km/h
Speed-rev. (km/h) 0 – 6,4 km/h
Dimensions
Overall length (cm) 162
Overall width (cm) 125
Dry weight (Kgs) 347
Operator Control & Comfort Systems
Roll-Over Protection Structure N.A.
Instrumentation Hour meter, fuel level gauge
Controls Integrated forward & reverse control levers with stability bar, Automatic PTO Restart
Parking Brake / Safety Circuit Internal transaxle brake / Operator presence in platform, Parking brake safety circuit for starting engine
Warranty
Engine 3-Year Manufacturer’s Limited Warranty
Transmission 2-Year Manufacturer’s Limited Warranty
Balance of machine 4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Belts, Tires, Brake Pads, Battery, Blades: 90 days

Ferris IS5100Z Accessories

  • Premium seat
  • RD/Mulching combi insert
  • Mulching blades
  • Trailer hitch ki
  • Full height mulching kit
  • Suspension seat
  • Suspension seat insert
  • Flat-free caster tyres
