Z1-P – New for 2027

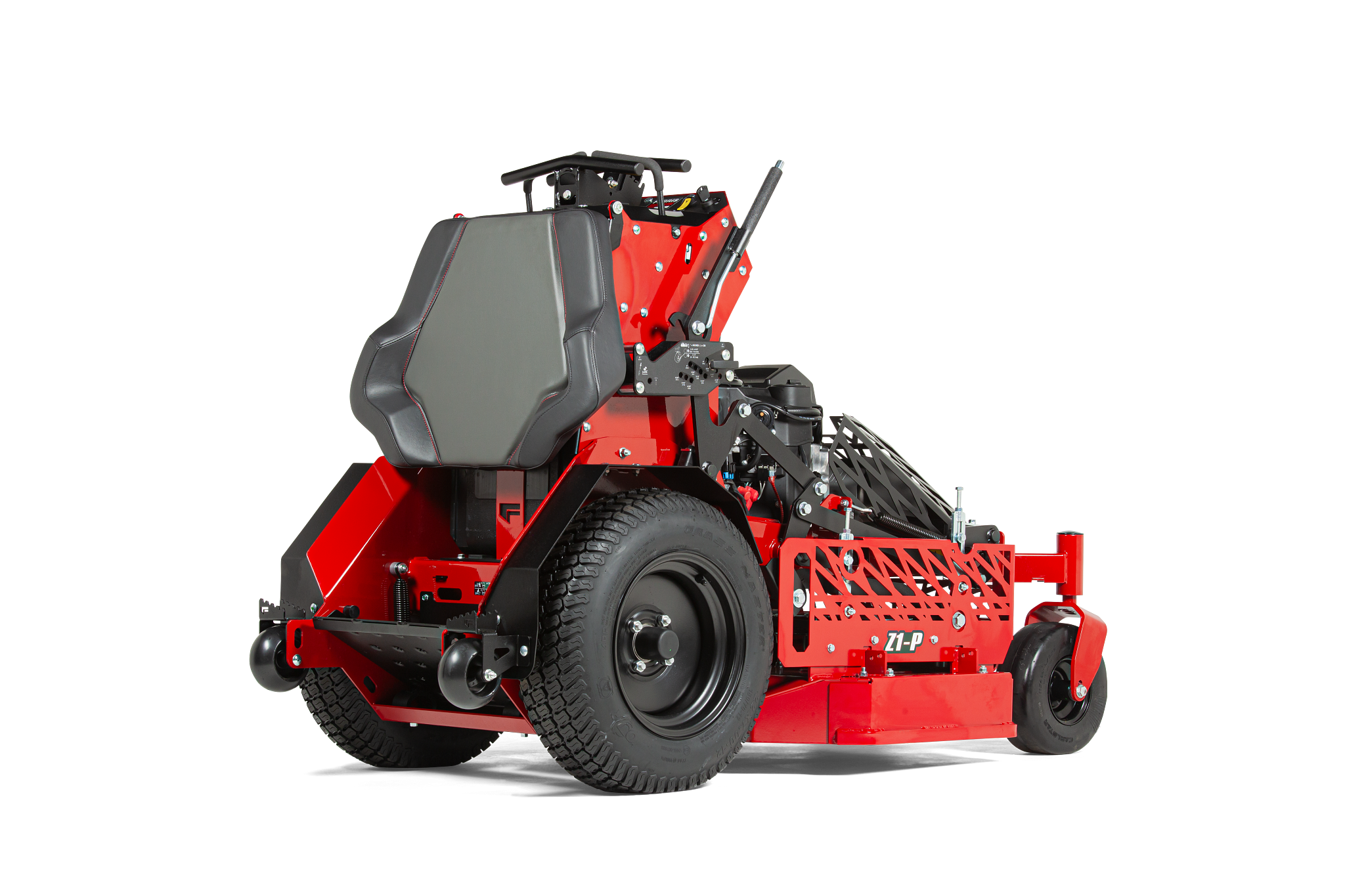

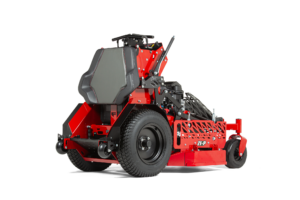

The all-new Ferris Z1-P 32″ is built to redefine compact stand-on mowing, delivering commercial-grade performance, exceptional manoeuvrability and operator comfort in a highly productive package. Designed from the ground up, the Z1-P combines a compact footprint with a wider operator platform, making it ideal for navigating restricted-access areas without compromising power or cut quality.
Featuring Ferris’ proven suspension technology with tunable platform dampers, the Z1-P provides a smoother ride, helping to reduce operator fatigue and maintain productivity throughout the day. Its intuitive controls, ergonomic layout and easy-access maintenance points ensure operators can spend more time mowing and less time in the workshop.
- Productive – compact 32″ deck delivers commercial-grade performance while fitting through standard garden gates
- Fast – ground speeds of up to 11.3 km/h help maximise productivity on every job
- Comfortable – wide 16-inch operator platform with tunable suspension dampers provides a smoother ride and enhanced operator comfort
- Superior control – stable stand-on design and ergonomic controls deliver confident handling across a variety of terrains
- Fuel efficient – patent-pending AeroMax™ blade technology helps operators mow more acres per tank without compromising cut quality
- Easy maintenance – maintenance-free spindles and easy-access service points reduce downtime and simplify routine servicing
- Built tough – commercial-grade construction delivers the durability and reliability demanded by professional landscapers
Why sit when you can stand?
✓ Reduces strain on the lower back
✓ The open standing platform enables operators to step off quickly in potentially hazardous situations
✓ Compact mower design allows access to tighter spaces and hard-to-reach areas
✓ Increased agility with zero-turn manoeuvrability in a lightweight machine
✓ Easily avoid obstacles, such as low branches, by shifting your weight and ducking underneath
Z1-P Features

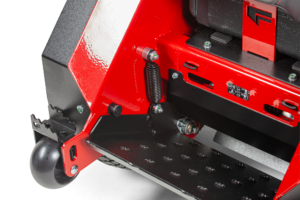

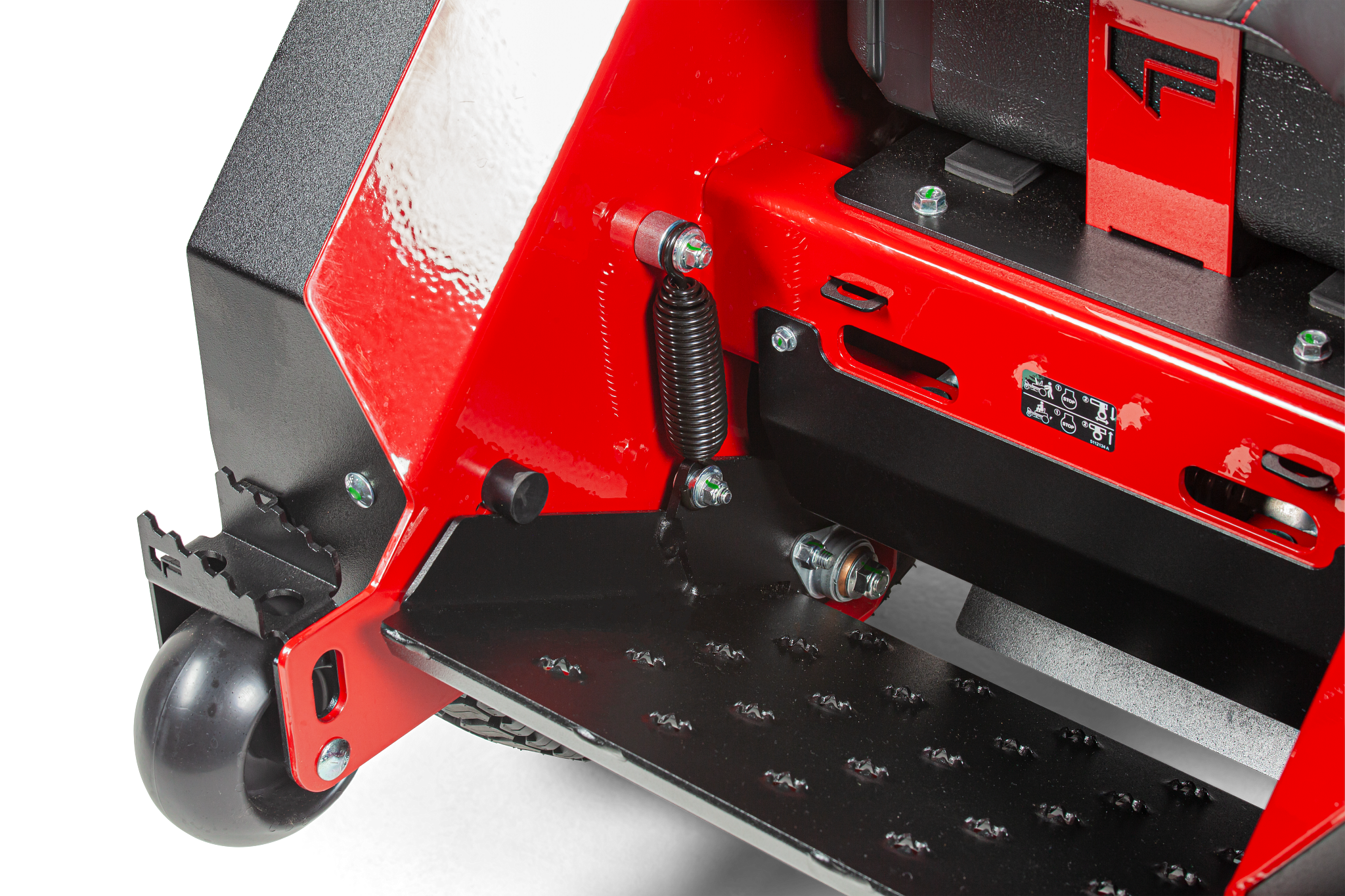

A 12% wider platform than its predecessor, combined with cleated footrests, provides operators with a secure and confident footing. The suspended platform, featuring adjustable damping, delivers exceptional comfort and a smoother ride, helping to reduce fatigue and support operators of all sizes throughout the day.

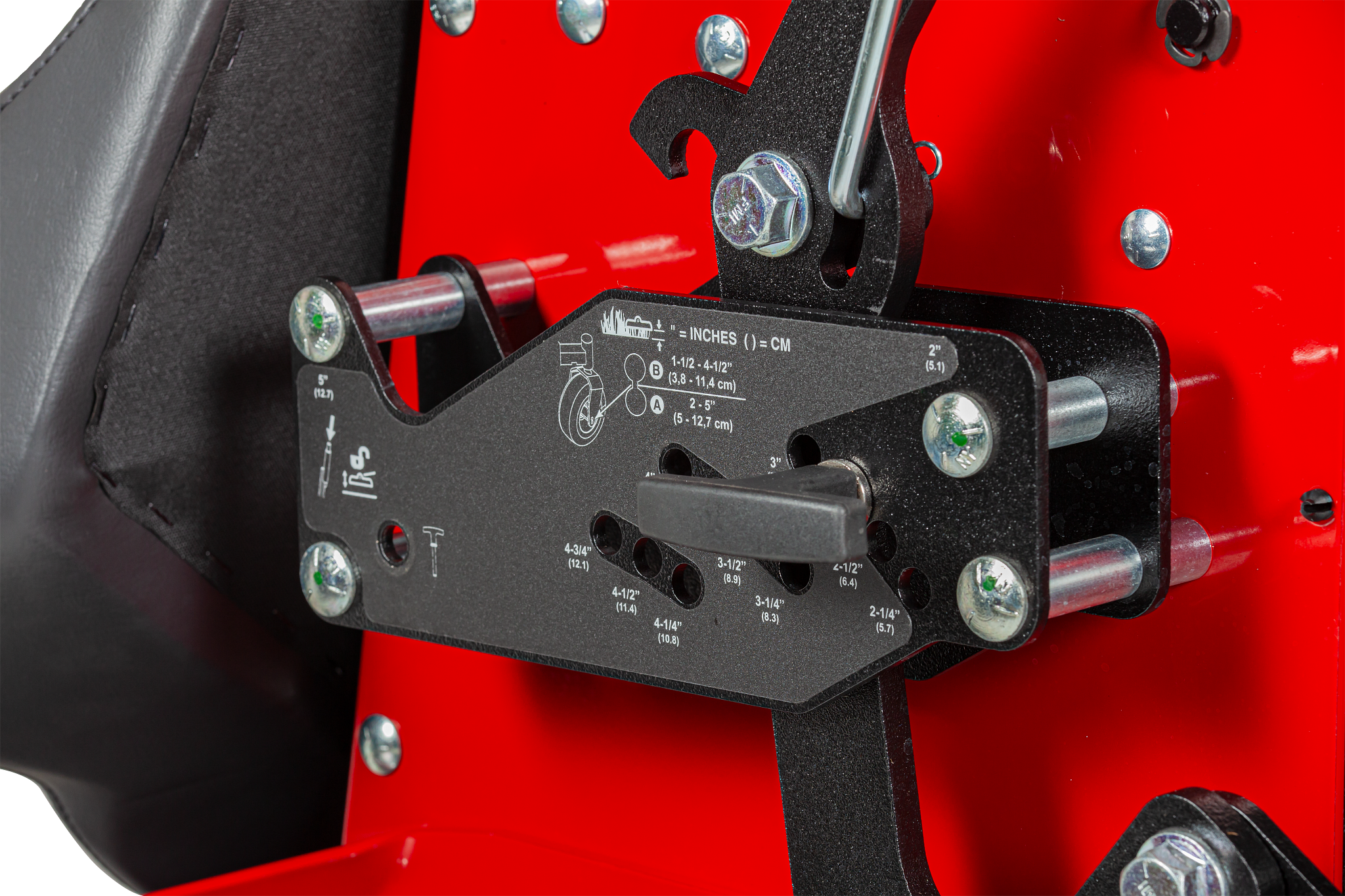

Easily adjust the cutting height from 38 mm to 114 mm, enabling operators to optimise cutting performance for varying grass conditions and finish requirements.

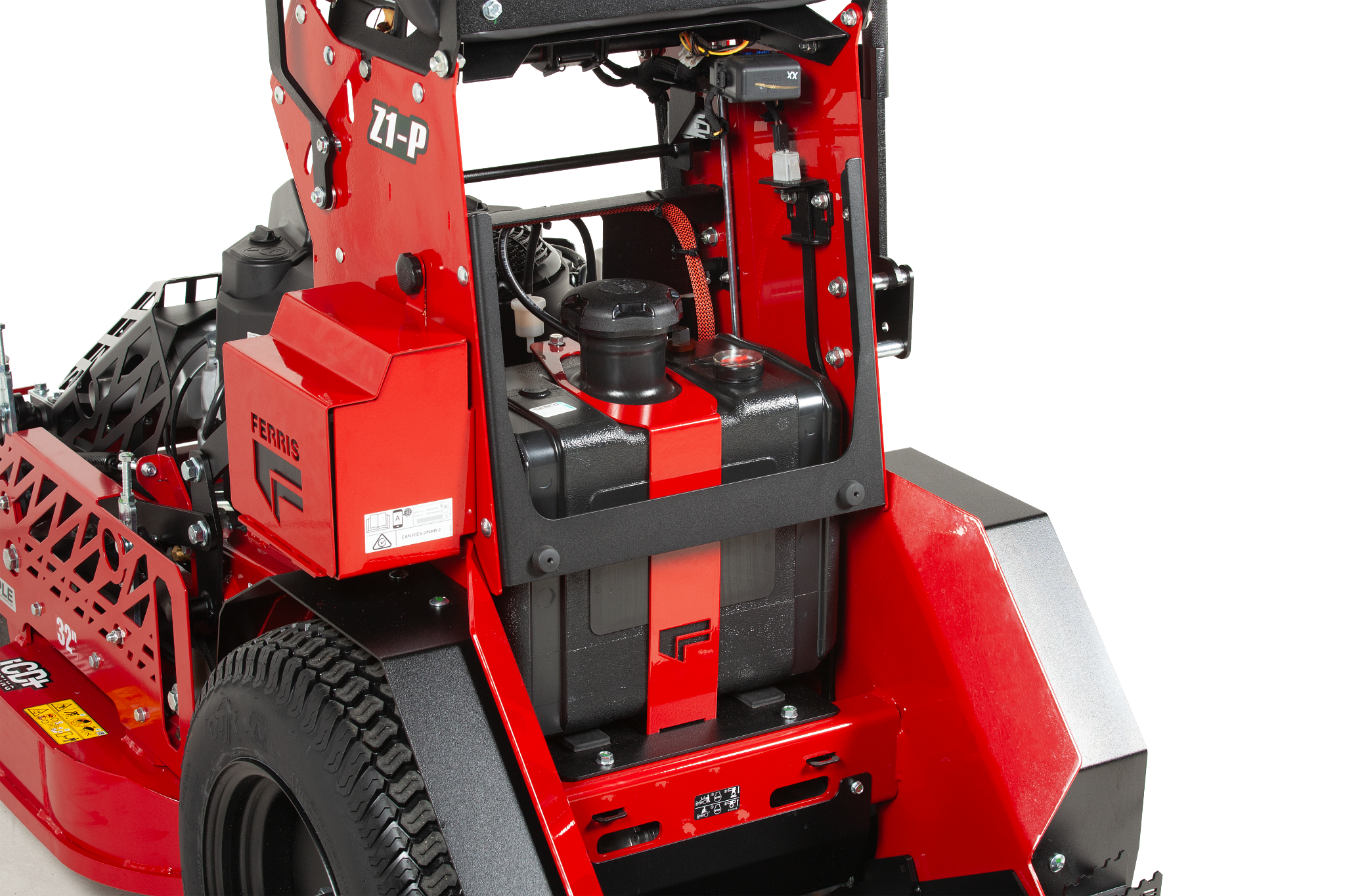

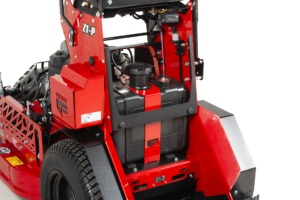

The generous 23-litre fuel tank is centrally located to provide consistent balance, while the fuel filler neck is conveniently positioned on the side for easy refuelling.

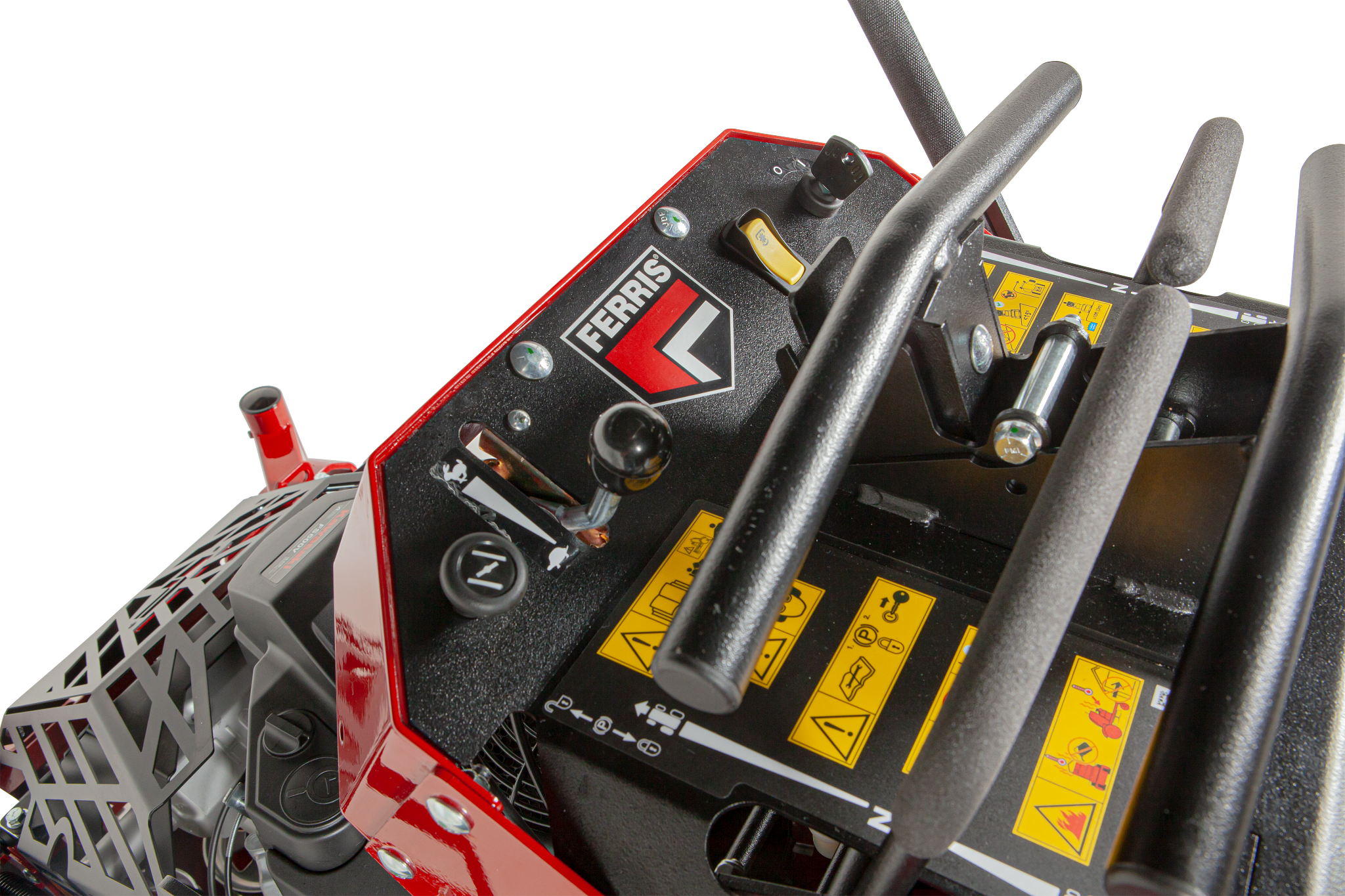

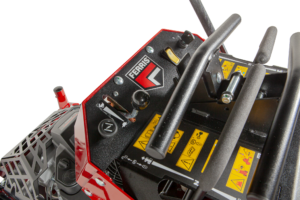

The easy-to-use, locking three-position speed control is conveniently located and requires no tools, enabling smooth operation across a wide range of mowing conditions.
The ergonomically designed thigh pad provides superior operator comfort, particularly when working on uneven terrain.

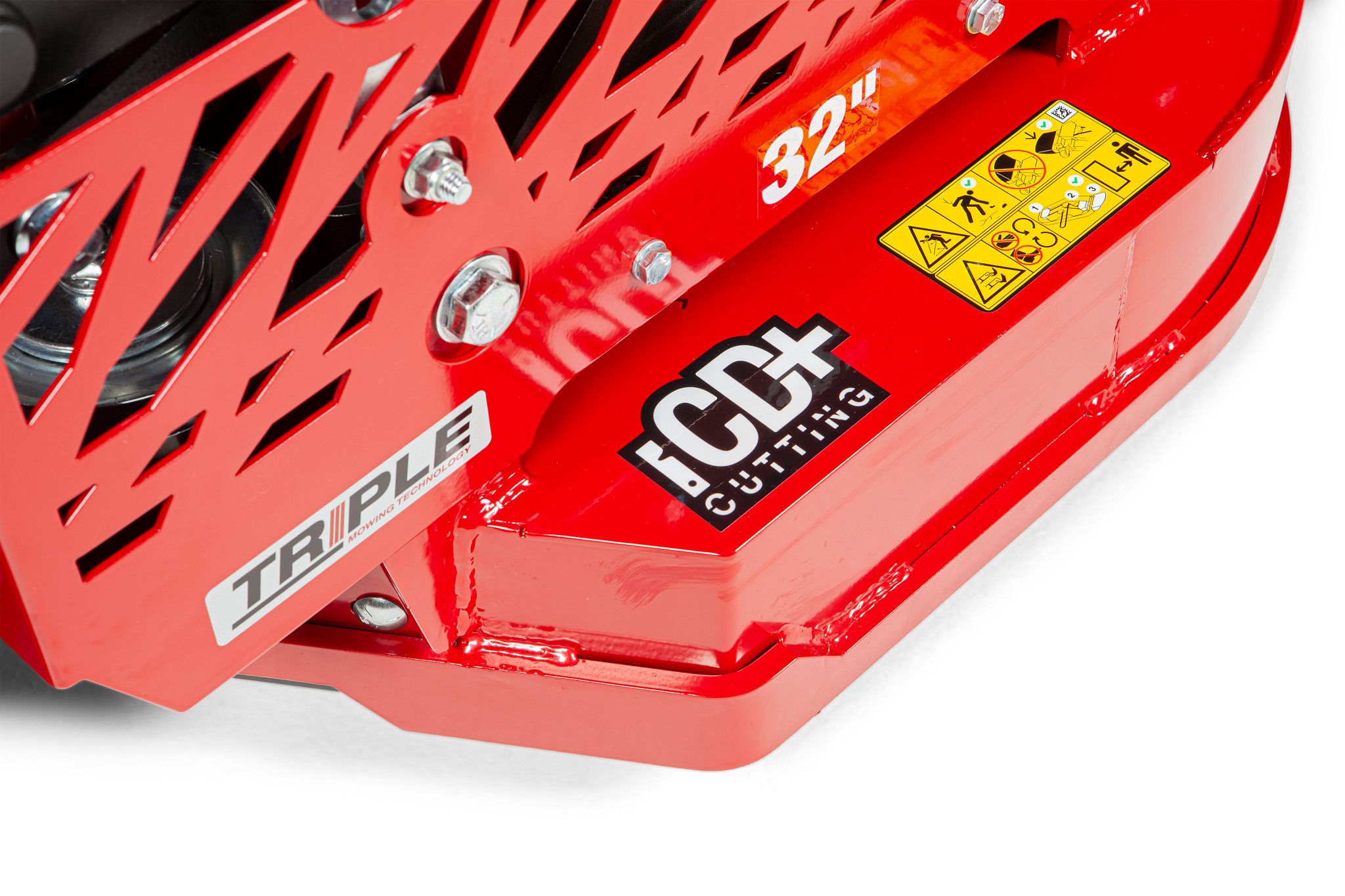

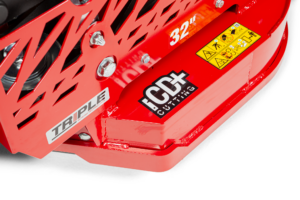

The iCD™ Cutting System provides enhanced airflow and exceptional cut quality, further reinforcing Ferris’ reputation for innovation and performance.
Specification
5902230
| Engine | |
|---|---|
| Make | Kawasaki – Petrol |
| Model | FX600V |
| Horsepower | 18.5 HP |
| Cylinders / Displacement | 2 Cylinders V-Twin / 603 cc |
| Cooling | Air-cooled |
| PTO | Electric PTO clutch |
| Starting | Electric |
| Fuel Capacity | 23 Litres |
| Mower | |
| Cutting width (cm/inch) | 81 cm / 32” Rear Discharge |
| Deck Configuration | Rear discharge/mulching insert and mulching blades |
| Cutting Height (cm) | 3.8 – 12.7 |
| Deck Construction | 3,4 mm fabricated construction, double top deck, double reinforced side skirts, overlap welded corners, round trim edge |
| Mower Spindles | Cast aluminium 133 mm; 25,4 mm shaft |
| Deck lift system | Hand-operated, spring assisted |
| Suspension & Drive Train | |
| Suspension | Suspended operator platform utilizing a pivoting platform supported by adjustable rubber isolators for improved operator comfort |
| Transmission | Independent Hydro-Gear® ZT-3100® transaxles |
| Drive Axles | 28,6 mm drive shaft with 4- |
| Drive Tyres (inch) | 22 x 7.00 – 12 Pneumatic tyre with turf tread |
| Caster Tyres (inch) | 11 x 4.00 – 5 (4 ply) Flat free tyre with smooth tread |
| Noise and Vibration | |
| HAV | < 2.5 |
| WBV | <0.5 |
| Sound dB(A) | 100 |
| Ground Speed | |
| Speed-fwd. (km/h) | 0 – 11,8 km/h |
| Speed-rev. (km/h) | 0 – 4,8 km/h |
| Dimensions | |
| Overall length (cm) | 174 |
| Overall width (cm) | 87 |
| Dry weight (Kgs) | 326 |
| Operator Control & Comfort Systems | |
| Roll-Over Protection Structure | N.A. |
| Instrumentation | Hour meter, fuel level gauge |
| Controls | Independent (left and right) forward & reverse levers with stability bar, Automatic PTO Stop, Operator presence in platform, Parking brake safety circuit for starting engine |
| Parking Brake / Safety Circuit | Internal transaxle brake |
| Warranty | |
| Engine | 3-Year Manufacturer’s Limited Warranty |
| Transmission | 3-Year Manufacturer’s Limited Warranty |
| Machine | 4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Belts, Tires, Brake Pads, Battery, Blades: 90 days |
